Technical Details

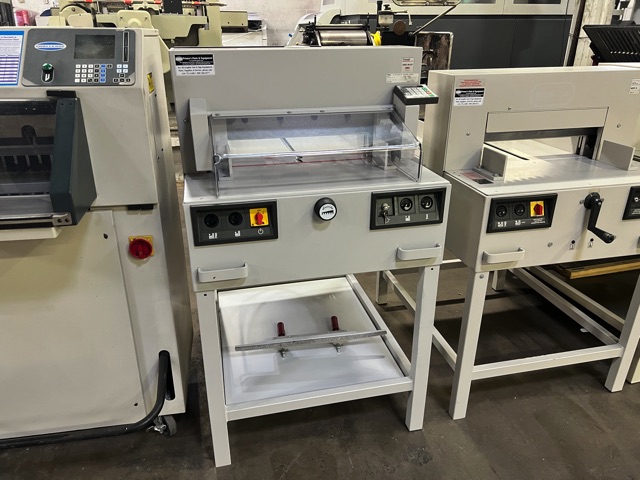

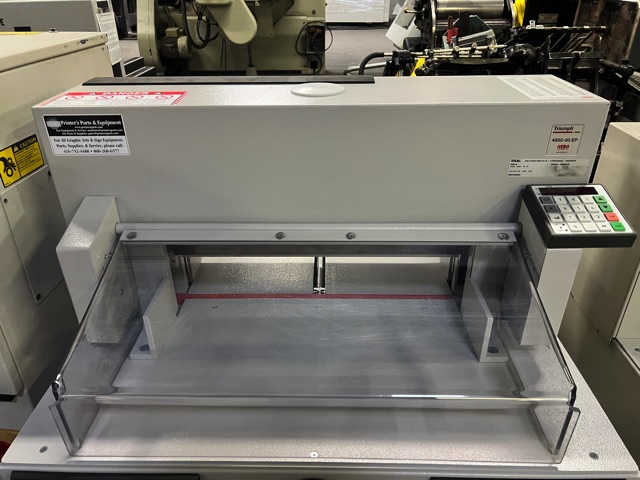

• 2012 Ideal-MBM Triumph 4850-95-EP
• Semi-Automatic Programmable Cutter
• Cutting Width 18-7/8", Cutting Height 3"
• Cutting Length Behind Blade 17 11/16"
• Table Length in Front of Blade 13 5/8", 120V
• Electrical Requirements: 115 V. 60 Hz., 20-amp dedicated line
• Dimensions (D x W x H): 41 1/2" x 30" x 51" (53 W with side tables)
• Weight: 556 lbs. (577 with side tables)
• Fully automatic cutter with electric blade drive, automatic clamp, and EASY CUT blade activation
• Ergonomic, 37" working height
• Electric blade and clamp drive
• Spindle-guided back gauge with calibrated crank
• Front table digital display (cm or inches) for precise back gauge positioning
• Bright, LED optical cutting line
• Adjustable back gauge with narrow separations and plastic gliders
• Automatic clamp
• Dual side guides on front and rear tables
• Solid steel blade carrier and adjustable blade guides
• All-metal construction
• Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
• Optional side tables increase work surface
• UL and C UL approved
• Patented EASY CUT electronic blade activation bars for true two-hand operation

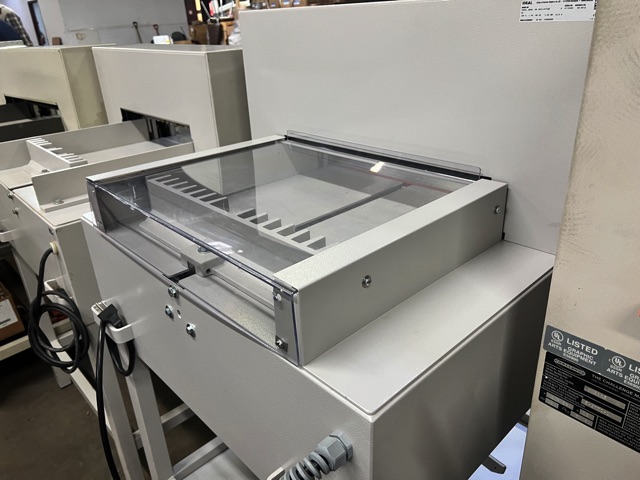

• Transparent, electronically controlled front safety guard safety cover on rear table
• Main switch and safety lock with key
• 24 volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade and clamp return from every position
• Disc brake for instant blade stop
• 1 - Blade changing device covers cutting edge of blade
• 2 - Blade depth adjustment from outside of machine
• 3 - Blade and cutting stick can be changed without removing covers
